- Dimensions
- W14 x H21.5 x D13.5 cm (W4 without bracket)
- Dimensions with Bracket
- W14 x H24.5 x D15.8 cm
- Product Type
- 2-way passive speaker (8?/100V)
- Frequency Response (-6dB)
- 90Hz – 18kHz
- Nominal Coverage
- 100° horizontal x 100° vertical
- RMS Power
- 20W
- Program Power
- 40W
- Nominal Impedance
- 8? (low impedance mode)
- Sensitivity (1W, 1m)
- 86dB
- Maximum SPL (program/peak)
- 99dB (calculated)
- Low Frequency Driver
- 4" polypropylene cone woofer
- High Frequency Driver
- 0.5" mylar dome tweeter
- Transformer Taps (100V)
- 1.25W / 2.5W / 5W / 10W

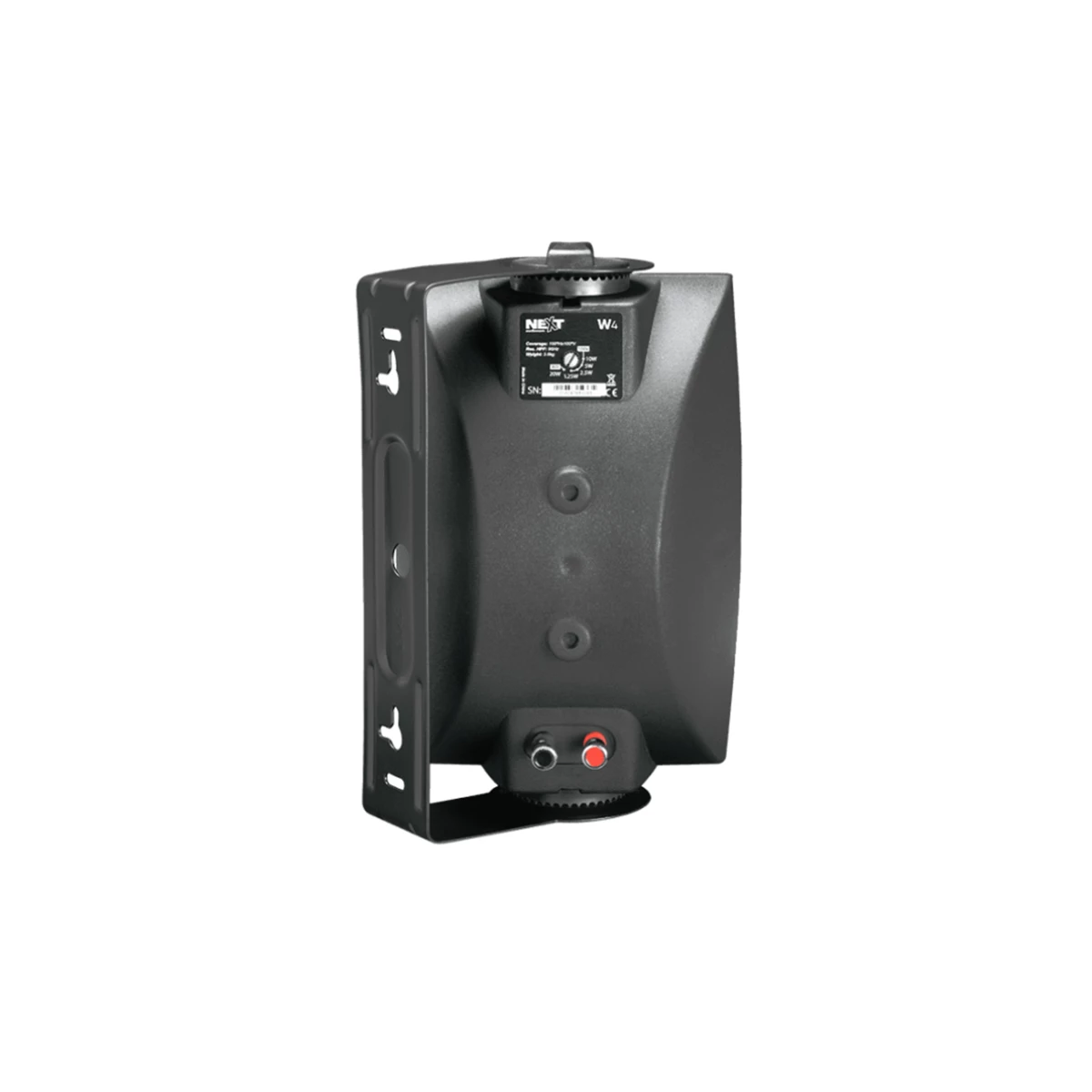

- Input Connectors
- Binding posts
- Construction
- High-grade rugged polypropylene
- IP Rating
- Indoor use
- Fixation
- Wall U-bracket (included)
- Net Weight
- 1.8kg (with bracket)
