- Dimensions
- W34.9 x H51.2 x D55 cm
- Net Weight
- 25.2 kg
- Product Type
- Active Band-Pass Subwoofer
- Subwoofer Driver
- 1 x 12" (300mm) / 3.5" (88mm) voice coil, Neodymium, B&C custom speaker
- Frequency Response (-6dB)
- 40Hz – X-over (user adjustable)
- Low Frequency Extension (-10dB)
- 34Hz
- Maximum SPL (Programme/Peak)
- 130dB / 136dB (Half-Space, calculated)
- Amplifier Technology
- 2-channel switched mode Class D with DSP
- Amplifier Power
- 1650W RMS
- Subwoofer Amplifier Power
- RMS: 1100W / Programme: 1480W / Peak: 2960W
- External Satellite Amplifier Power
- RMS: 550W / Programme: 740W / Peak: 1480W @ 4?
- DSP Technology
- Controlled, networkable DSP, 24bit/48kHz
- DSP Presets
- 6 Factory + 2 User, selectable via software or rear panel switch
- Connectivity
- RS485 and Soundware software (USB), Powercon input/output
- Power Input
- 180V – 245V
- Power Consumption
- 770W
- Fittings

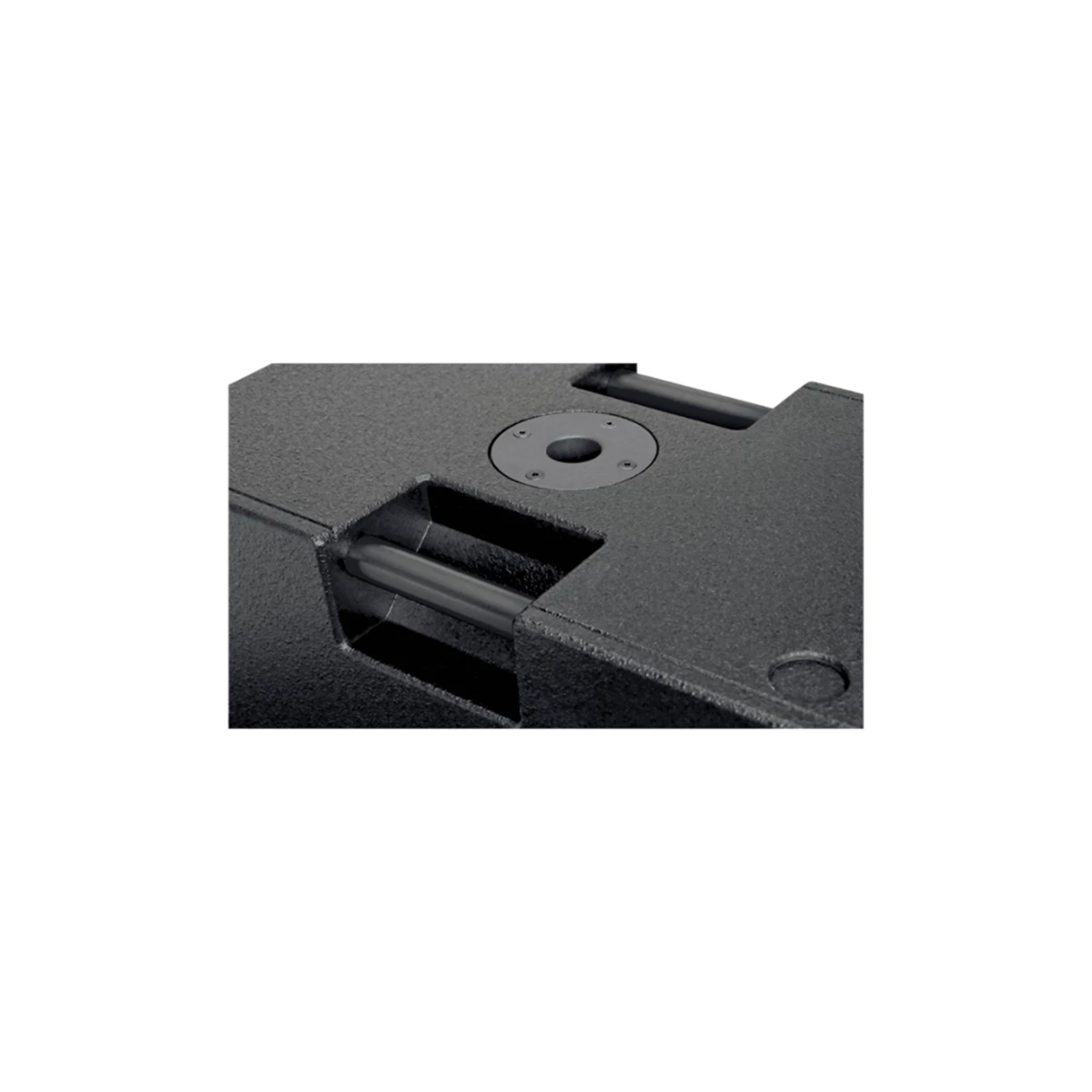

- 1 x 35mm Pole Mount Socket
- Handles
- 2 on upper side edges (black or red)
- Construction
- 15mm multi-laminate birch ply
- Finish
- Semi-matte black textured coating
- Cooling
- Convection/Temperature controlled fan
