- Dimensions (Ø x D)
- Ø190 x D79 mm
- Cutout Diameter
- 170 mm
- Mounting Depth
- 80 mm
- Wall / Ceiling Thickness
- 5 mm to 35 mm
- Net Weight
- 0.67 kg
- Product Type
- 100V Ceiling Speaker
- Frequency Response (-10dB)
- 70 Hz – 16 kHz
- Nominal Coverage (-6dB)
- 85º Conical
- RMS Power
- 6W
- Full-Range Driver
- 6.5" Dual Cone Woofer
- Sensitivity (1W, 1m)
- 90 dB
- Maximum SPL (Pgm/Peak)
- 97.8 dB (calculated)
- Transformer Taps 100V
- 1.5W / 3W / 6W
- Transformer Taps 70V
- 0.75W / 1.5W / 3W
- Input Connectors
- Quick Release Connector
- Recommended Amplifier
- MX120 / MX350

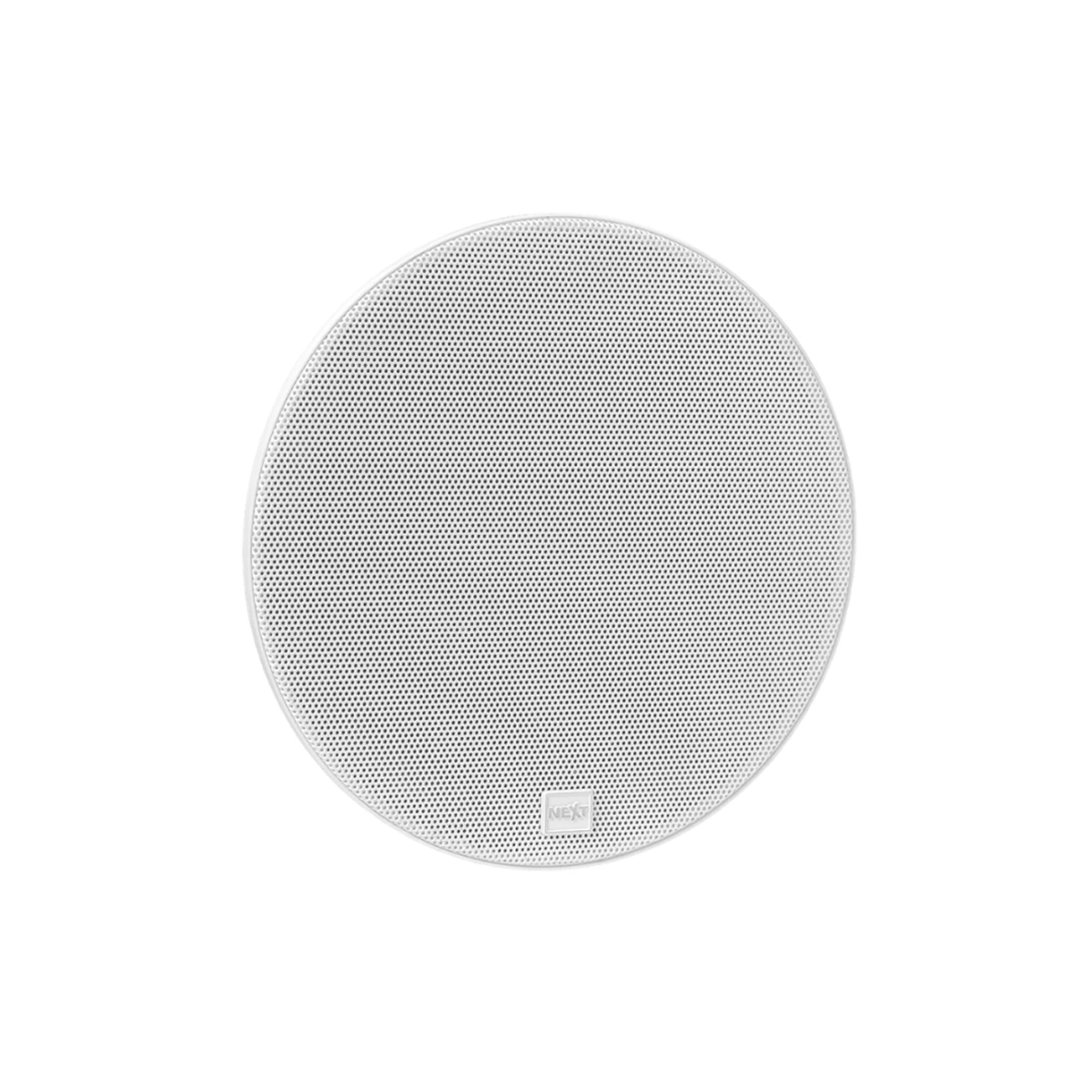

- Grille
- White aluminium frameless grille RAL9003 (paintable), detachable logo
- IP Rating
- Indoor use
- Fixation
- Metal clamps for ceiling fixation
- Standards
- In compliance with IEC268-5
